Main Configuration:
该产品为X、Y、Z、C轴伺服控制半闭环式斜床身车铣复合机，结构及外形尺寸紧凑合理，主轴(C轴)为伺服电机驱动。能够实现对各种材料轴类，盘类等零件的外圆、端面、螺纹的车削，径向和轴向各种曲面铣削、钻孔等多种工序加工，适合于小型零件的高效加工制造。

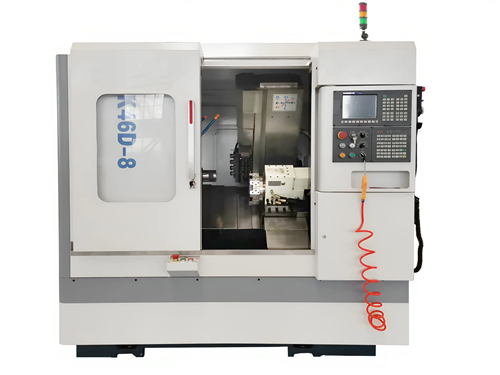

The Machine is slant bed CNC Turning-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinds processes. This machine is suitable to process small work piece in a highly efficient.
|
基本配置： 广数GSK988TA系统 精密预拉伸滚珠丝杠 液压筒夹 8工位伺服刀塔 伺服电机(C轴功能) 4+4 Y轴动力头 自动润滑系统 自动冷却系统 全防护罩 |
Standard Accessories： Controller：GSK988TA High precision pre-tension ball screw Hydraulic Collet Chuck 8T Servo turret Servo main motor (C axis) 4+4 Living Tool with Y axis Auto lubrication system Auto Cooling system Full splash cover |
|
可选配置： FANUC、SIEMENS等其他系统 排屑机 送料机 |
Optional Accessories： FANUC、SIEMENS or other brand controller Chain Type Chip Conveyor Bar Feeder |
Main Specifications:
|
技术参数 |
Specification |
CK46D-8 |
|
|
床身上最大回转直径 |
Max. dia. swing over bed |
450mm |
|
|
溜板上最大回转直径 |
Max. dia. Swing over carriage |
160mm |
|
|
最大切削长度 |
Max. working length |
450mm |
|
|
床身结构 |
Machine bed structure |
35° 斜床身Slant type |
|
|
主轴锥度 |
Spindle nose |
A2-5 |
|
|
主轴转速 |
Spindle speed |
50-4500r/min |
|
|
主轴通孔 |
Spindle bore |
56mm |
|
|
主电机功率 (C 轴) |
Main motor (C axis) |
7.5kw |
|
|
动力头 |
Living tool |
4 (ER25) + 4 (ER25) |
|
|
动力头功率 |
Living tool power |
2.3kw |
|
|
动力头转速 |
Living tool speed |
3000r/min |
|
|
行程 Transverse |
X轴 |
X axis |
500mm |
|
Z轴 |
Z axis |
450mm |
|
|
Y轴 |
Y axis |
240mm |
|
|
刀塔形式 |
Turret type |
8工位液压刀塔 8 Hydraulic turret |
|
|
快移速度 Rapid movement |
X轴 |
X axis |
24000mm/min |
|
Z轴 |
Z axis |
24000mm/min |
|
|
Y轴 |
Y axis |
15000mm/min |
|
|
X/Y/Z 定位精度 |
X/Y/Z positioning accuracy |
0.006mm |
|
|
X/Y/Z 重复定位精度 |
X/Y/Z Repositioning accuracy |
0.003mm |
|
|
机床重量 |
Weight |
3t |
|
|
机床尺寸 |
Machine size |
2500X1800X1800mm |
|
